- • AlTiN-Coated Ultra Micro Grain Solid Carbide End mills
-
_pic.jpg)
EMI93
TitaNox-Power HPC 5 Flute 38° Helix End Mill
-
-
EMI94
TitaNox-Power HPC 5 Flute 38° Helix Corner Radius End Mill
-
-

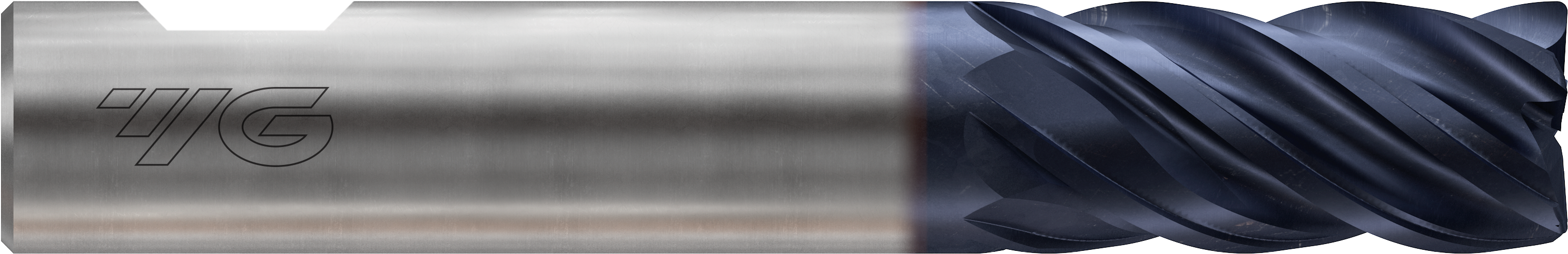

EMI95
TitaNox-Power HPC 5 Flute 38° Helix End Mill
-
-
EMI96
TitaNox-Power HPC 5 Flute 38° Helix Corner Radius End Mill
-
-
YG-1 Expands TitaNox-Power HPC 5-Flute Solid Carbide End Mill Line to Include Metric Sizes
New 5 Flute Design Optimized for Heavy Cutting Applications YG-1 has expanded TitaNox-Power HPC 5 Flute to metric sizes. This new 5 flute with a new core design and an advanced coating enables for tackling both a heavier side cutting and slotting result in higher productivity and longer tool life. Product Features Core Design: The new double taper core design improves chip load capacity during heavy cuts, maintains rigidity in peel milling, and enables 0.5xD slotting in ISO-S materials.Geometry: Full eccentric grind relief and unequal index provides for higher cutting-edge strength and chatter-free machining while also improving tool life.YG-1 Coating Technology: The advanced AlTiN coating provides improved wear resistance, especially in nickel-based alloys. Applicable IndustriesIdeal for use in aerospace and defense industries, where machining of titanium and stainless-steel alloys is expected to increase. In addition to aerospace and defense, applications can be found in food processing, chemical, offshore, and nuclear energy generation. New Product Line Summary - 92 standard metric sizes stocked, from Ø6mm to Ø25mm - Regular length with precision round h5 shanks (below 12mm shank), including Weldon shanks.- Corner chamfer and corner radius styles are standard.
Oct 6, 2023
SHARE
-
-
YG-1 Expands “TitaNox-Power HPC 5 Flute End Mill Line” in Inch Sizes
New 5 Flute Design Optimized for Heavy Cutting Applications “TitaNox-Power” End Mill, part of YG-1’s high performance milling line, is uniquely designed for Titanium machining available in 4 flute and 5 flute designs. ‘TitaNox-Power’ special coating technology provides heat and wear resistance in side milling and profile milling operations. Now, YG-1 will be launching a new 5 flute design, ‘TitaNox-Power HPC’ line in inch sizes which is optimized for heavy cutting applications in stainless steel, titanium, and heat resistant super alloys. Core design enhances chip space in heavy cuts, and YG-1 coating Technology increases tool life.The Main Features of TitaNox-Power HPC• Core Design It is designed for superior chip evacuation. It is excellent at slotting and heavy profiling.• Unequal Index Unique YG-1 geometry to reduce vibration and achieve excellent surface finish.• YG-1 Coating Technology Advanced coating technology for better wear resistance, maximum tool life and high performance.TitaNox-Power HPC inch sizes are expected to be officially launched at the beginning of September.
Sep 1, 2021
SHARE
-
